IXOLIFT Electric DataLifts
Effortless Power for Your Most Demanding Tasks
Ensure safe and secure server handling while elevating your operations
with a product trusted by data center industry leaders.
Certified for Peace of Mind
The IXOLIFT DataLifts meet stringent international and European safety regulations, ensuring reliability and peace of mind for your team.
Truly Global Customer Reach
Our server handling products have been delivered to over 15 countries, showcasing our commitment to quality and customer satisfaction.
Enhanced Operational Efficiency
Designed with optimal functionality in mind, the IXOLIFT DataLifts significantly boost your ROI with operational efficiency and productivity.
Trusted by Industry Leaders
Tier 1 data center operators rely on our safe lifting solutions, reflecting our reputation for excellence in the industry.
IXOLIFT DataLift Feature Highlights

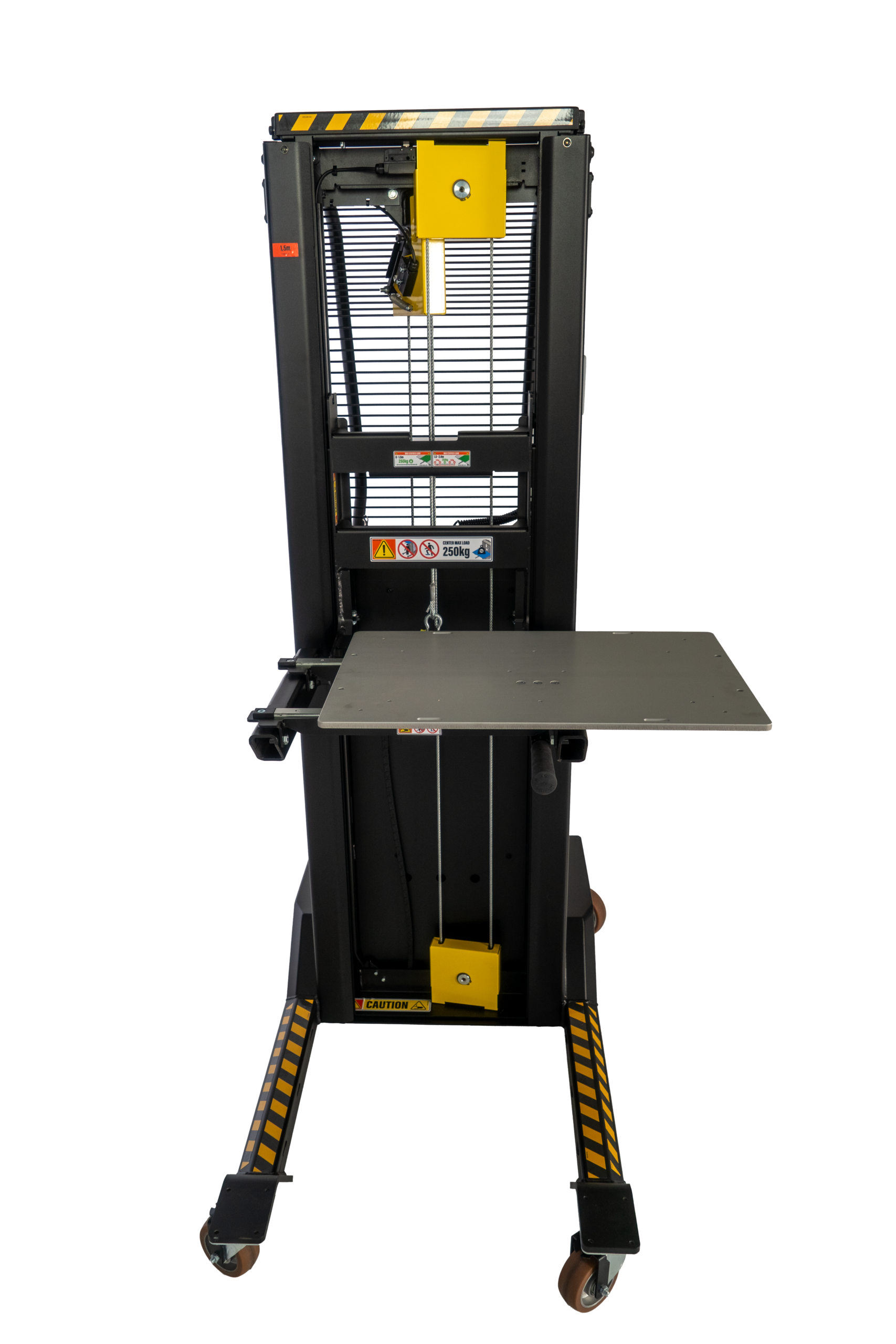

Controlled lift
Large platform for controlled smooth lifting of server equipment.
Reach & load capacity
Maximum height of 2.4 m. Loads range from 200 kg, 250 kg and 500 kg for center load depending on the model – refer to product brochures.
Zero risk of oil leaks
DataLifts are designed with oil-free, maintenance-free gear boxes to ensure that there would be no accidental oil leaks in data centers.

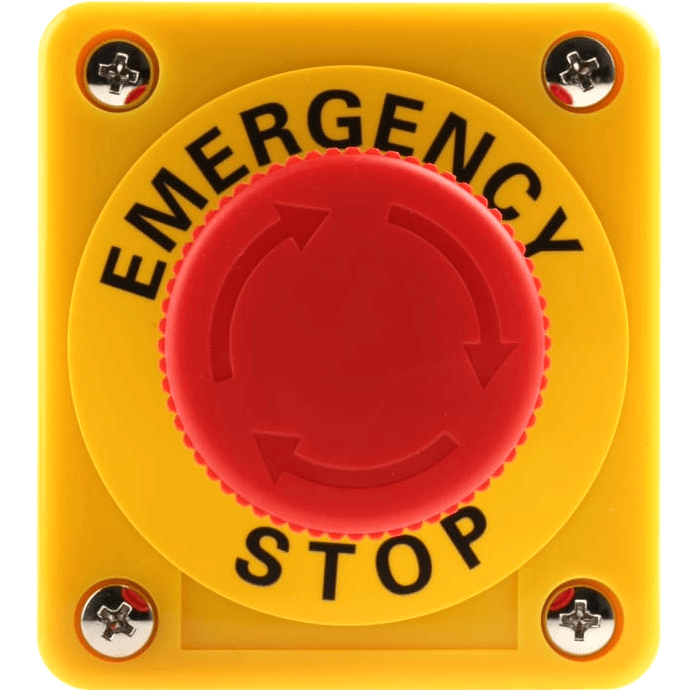

Emergency stop button
Easily accessible on the control panel to ensure operator safety. EU Machinery Directive 2006/42/EC explicitly includes requirements for emergency stop in machines to be accessible.

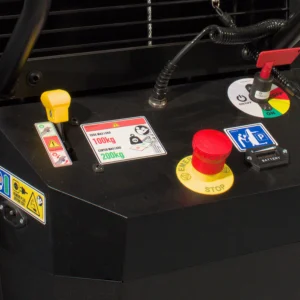

Standing height in directional lock
Locks and releases wheels on the control panel to prevent the wheels from rotating entirely when loading or unloading equipment. Ergonomically designed so the operator does not have to bend down.
Clear forward visibility
The dual-mast design provides clear visibility through the lift, enabling the operator to navigate safely and avoid collisions during movement.
Ready to Transform
Your Data Center
Operations?
Frequently Asked Questions
A DataLift is a mobile lifting platform specifically engineered to assist in transporting servers or other IT equipment to the appropriate height for installation in a server rack.
It is designed to improve safety and efficiency during the handling and placement of heavy or sensitive data center hardware.
Installing equipment in a 42U rack is already a challenging task that often requires a DataLift. The difficulty increases even more with a 52U rack, which stands at 2.44 meters (7.58 feet) tall, making access to the top rack units especially demanding.
That’s why the DataLift E family and DataLift F were developed—to make lifting tasks easier and safer for technicians working with tall server racks.
The IXOLIFT DataLifts comply with the following European and iinternational regulations:
This server equipment lifter is designed and manufactured in Finland to ISO 9001 and ISO 14001 standards for excellence in quality and environmental management systems.
Certified for Safety & Compliance Built to uphold the highest safety benchmarks, the lifter complies with both of the European and international regulations, including:
• Directive 2006/42/EC (Machinery Directive)
• EN ISO 3691-5:2020 11 (Industrial trucks – Safety requirements for manually operated trucks)
• EN ISO 12100:2010 (General principles for design Risk assessment and risk reduction)

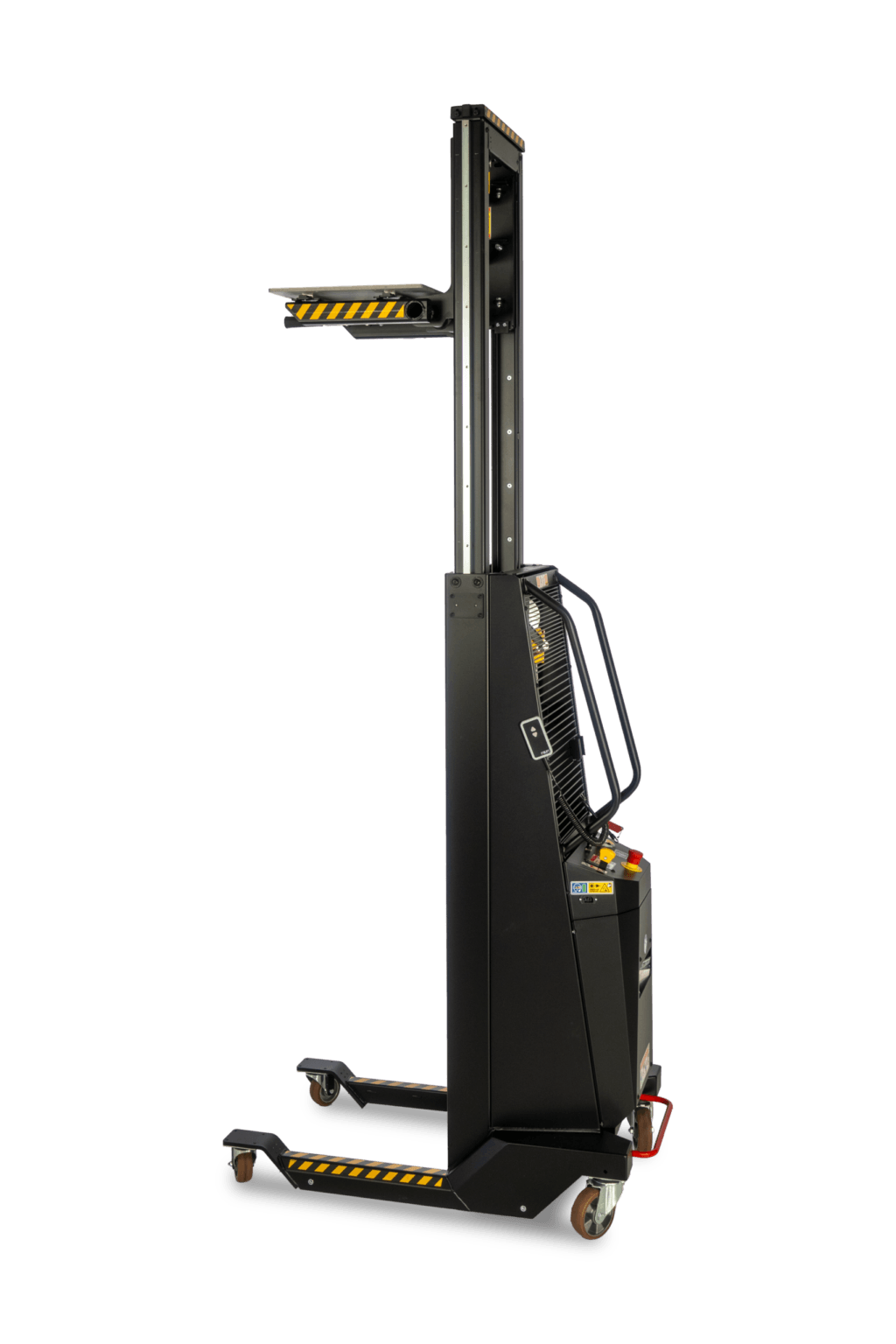

DataLift E Max and DataLift E Max LIB are the most heavy-duty lifts, offering an operating height of up to 1.5 m with a center load capacity of 500 kg (1,100 lbs).
They can also reach an overall lifting height of 2.4 m (7.87 ft) with a maximum load of 250 kg (550 lbs).
A DataLift is purpose-built for the unique challenges of installing and removing servers in data centers – offering greater safety, precision, and ease of use compared to a standard material handling platform, which is designed for general warehouse or industrial use.
DataLift E Pro (LIB), DataLift E Max (LIB), and DataLift F Pro can reach a maximum height of 2.4 m, while DataLift M has a maximum height of 2.3 m.
Please refer to the brochures for the specific load capacities of each model.
Our electric DataLifts are powered by AGM or lithium batteries — both of which are maintenance-free and eliminate the need for daily or routine upkeep. AGM and lithium batteries are sealed and spill-proof making them a dependable, hassle-free choice for data center environments. In contrast, traditional lead-acid batteries require regular maintenance to ensure safe and reliable operation.
Compare IXOLIFT DataLift Products
| Model | Key Use Case | Key Benefits |
|---|---|---|
| DataLift E Max electric, 500 kg / 1100 lbs | Heavy-duty lifting for large IT equipment, battery charge lasts at least a day | Maximum safety for extra heavy loads for migration or removal of servers from the racks |

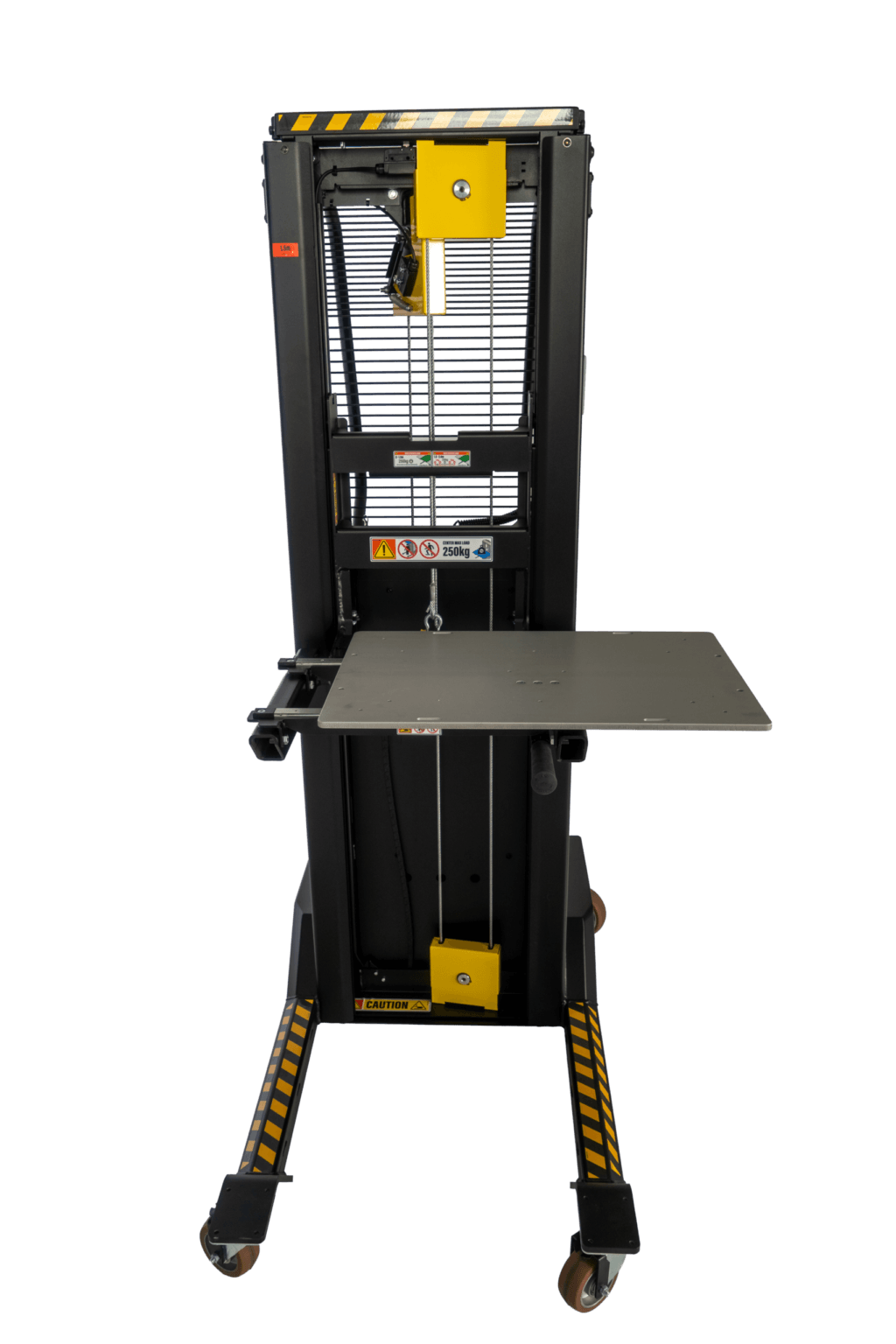

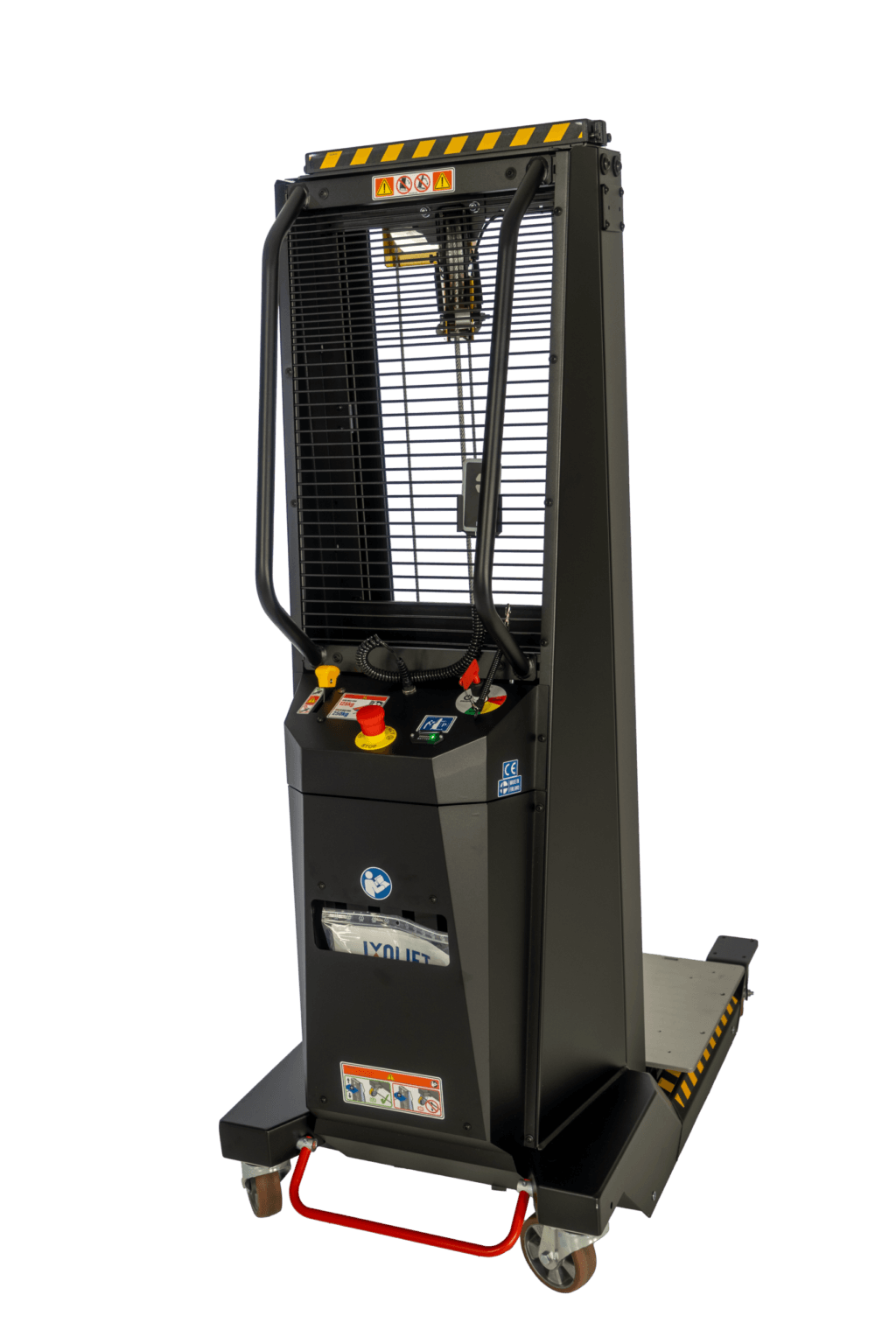

| DataLift E Pro electric, 250 kg / 550 lbs | Frequent lifting for racking IT equipment, battery charge lasts at least a day | Most versatile solution, electric lifter, maintenance-free for daily use |
| DataLift F Pro electric, 200 kg / 440 lbs | Installing units deeper within the rack with a front-loader | Extended reach, precision placement, compact design |
| DataLift M manual, 175 kg / 385 lbs | Easy lifting of server equipment, no charging required | Lightweight, easy to maneuver, ideal for occasional operations |
Need to reach higher?
Have a good look at
IXOLIFT X510
