DataLift Accessories
IXOLIFT
Accessories
LiftAssist DC lifts the server from the box to the platform. RollerBoard DC slides it from the platform into the rack. WideBoard DC provides larger tables for wider servers.
Box-to-Platform, Platform-to-Rack
Box-to-platform

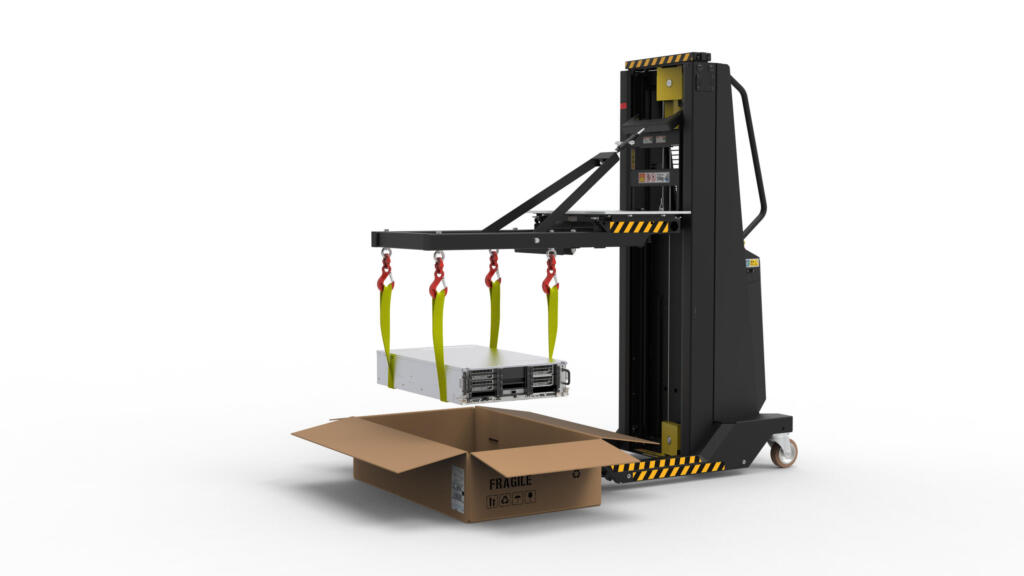

LiftAssist DC raises the load from the box up to 1,500 mm, safely centred, with no manual lifting.
Platform-to-rack
RollerBoard DC turns the DataLift table into a rolling deck: the load slides across to the rack under hand pressure alone.
Larger platform table
WideBoard DC provides a significantly larger and more stable working surface for oversized IT equipment.
LiftAssist DC
From box to height — safely, vertically, and without back strain.
The LiftAssist DC enables the safe vertical handling of servers, IT hardware, and network equipment. It eliminates the manual lifting of loads up to 250 kg and reduces the risk of back injury in live data-centre environments.

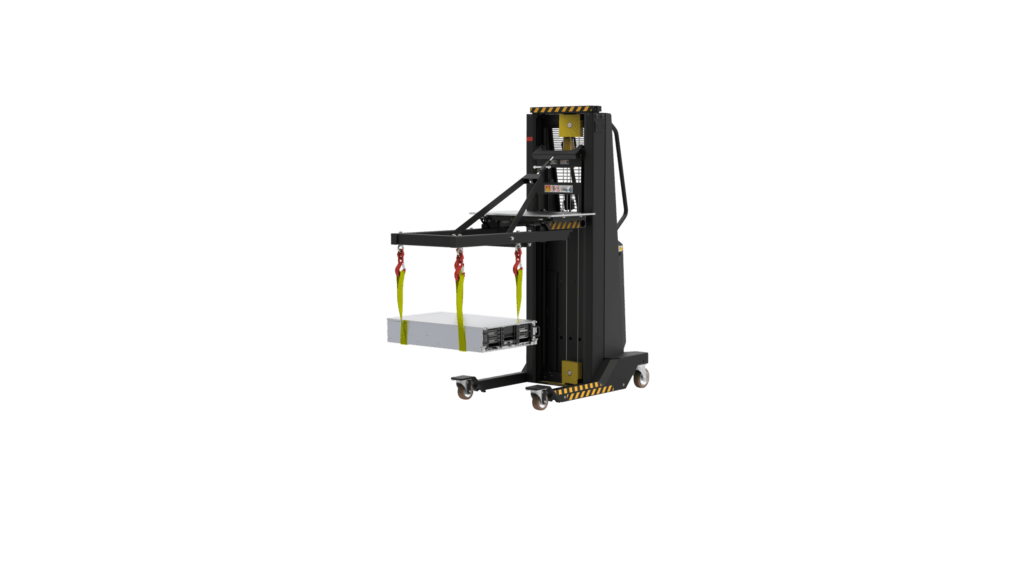

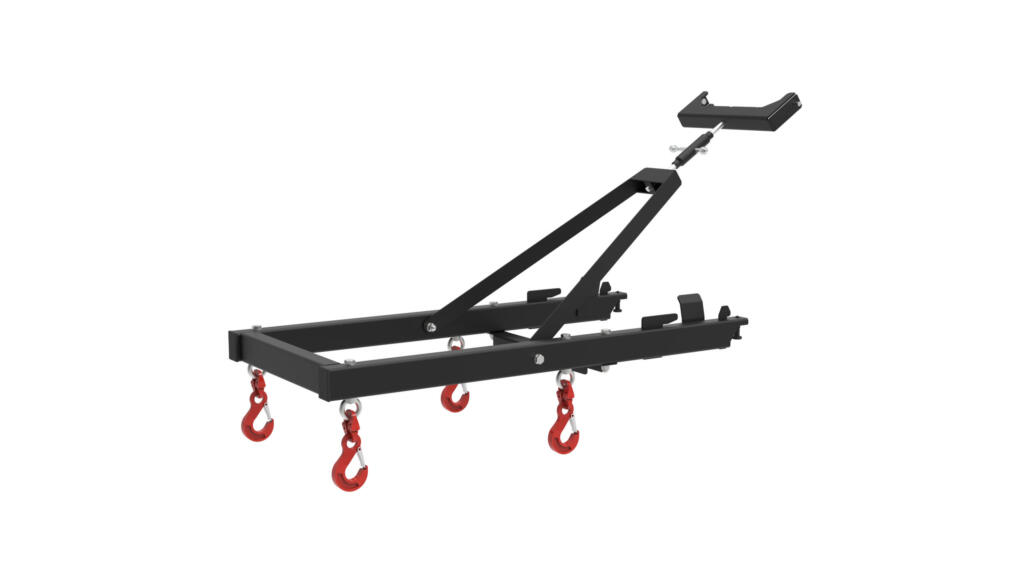

This accessory snap-mounts to the DataLift’s L-slot in seconds. Four hooks anchor the chassis through its lift points; the LiftAssist frame raises the load up to 1,500 mm, safely centred, with a 5° deviation tolerance.
An add-on accessory for the DataLift family of sideloaders. Compatible with DataLift M, E PRO, and E MAX.
- Rated max load
- 250 kg
- Max vertical lift
- 1,500 mm
- Accessory weight
- 18 kg
- Overall dimensions (L × W × H)
- 1,400 × 490 × 160 mm
- Attachment
- Hook + turnbuckle to DataLift L-slot
- Compatibility
- DataLift M, E PRO, E MAX (not F PRO)
RollerBoard DC
Slide the server home. Controlled. One operator.
The last half-metre of a server installation is the one that can go wrong.

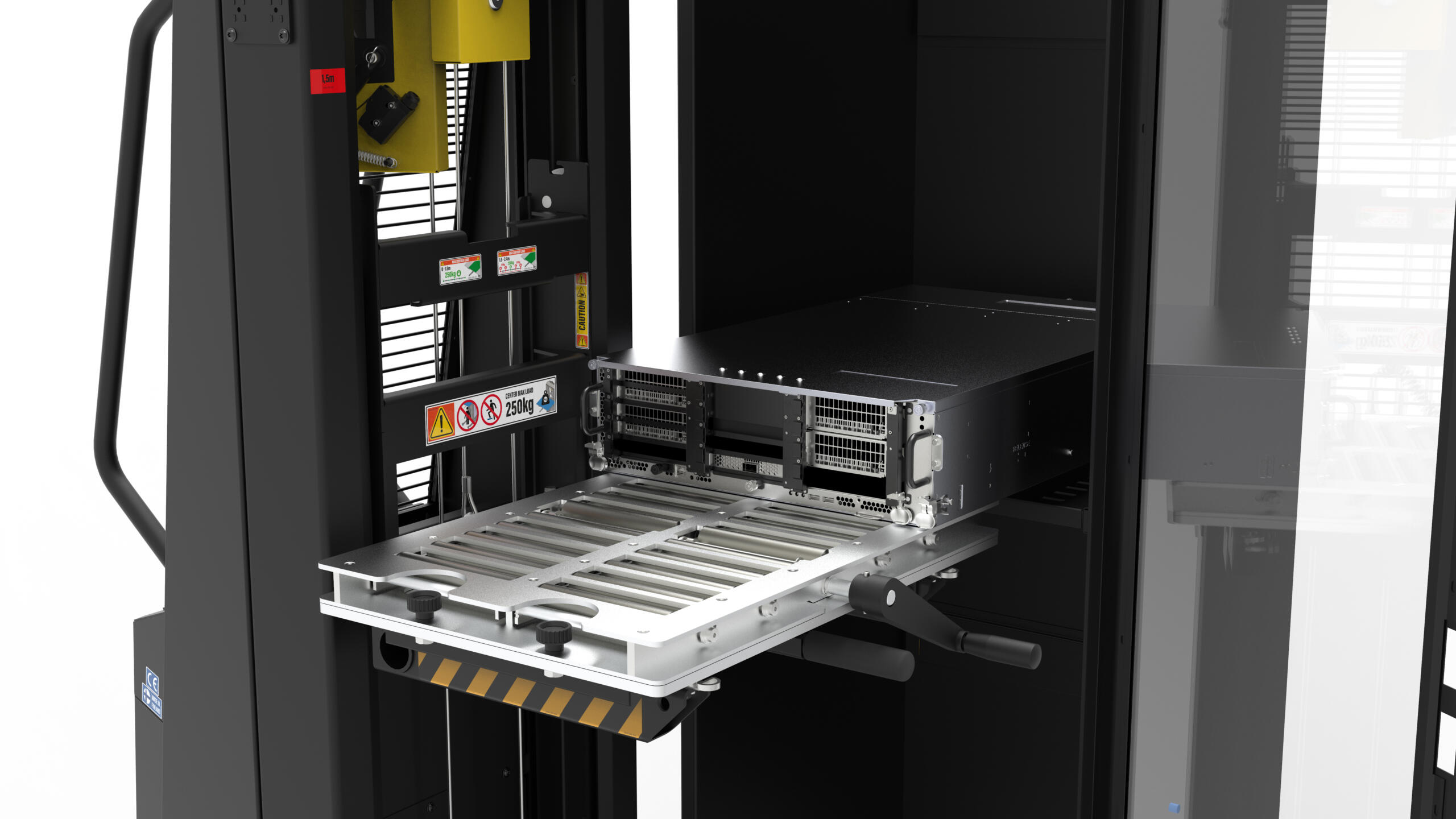

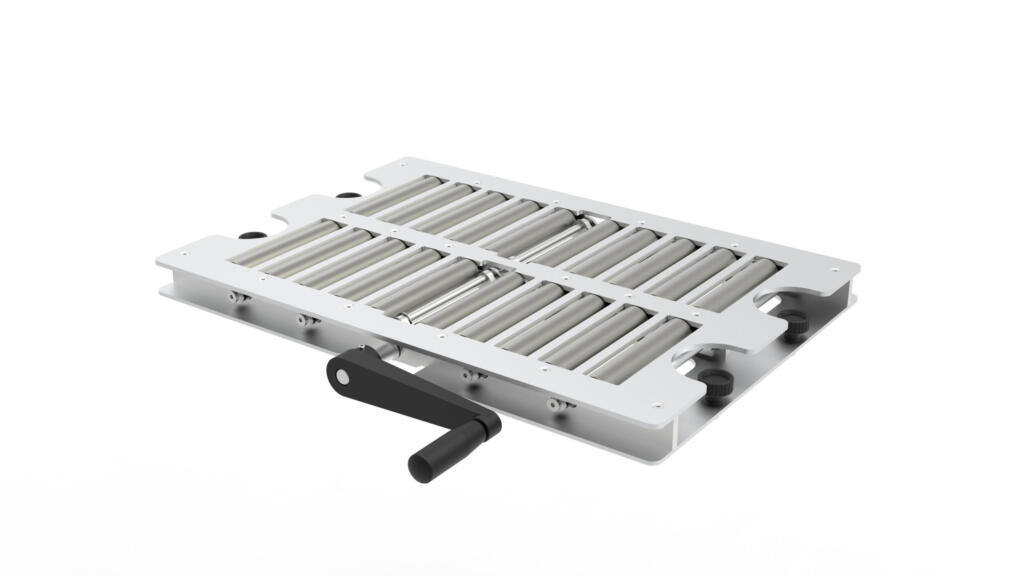

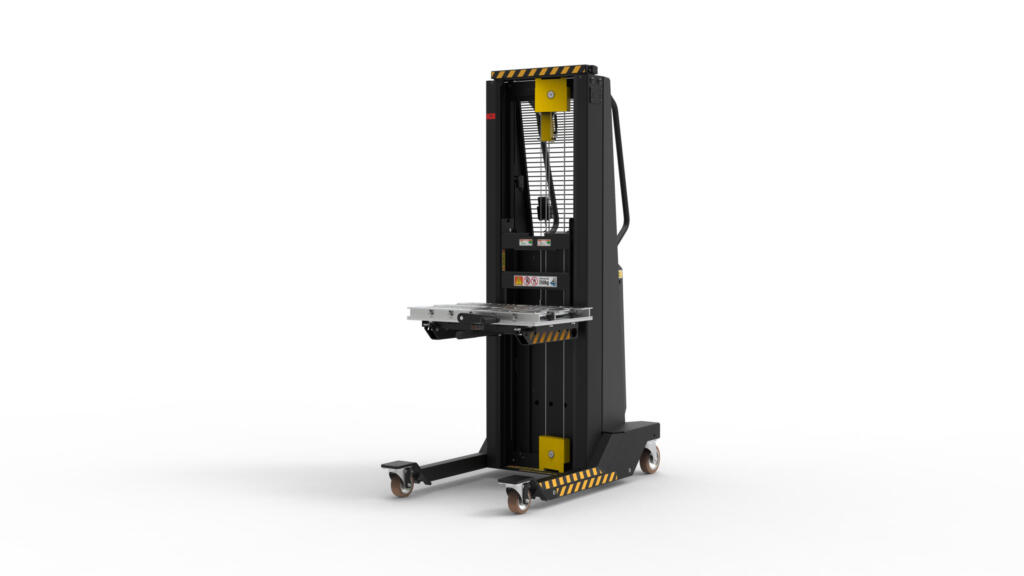

RollerBoard DC mounts on the DataLift table and turns it into a rolling deck: twenty rollers that extend on a crank handle, so a 500 kg load moves off the lift and into the rack without being dragged, lifted or shoved.

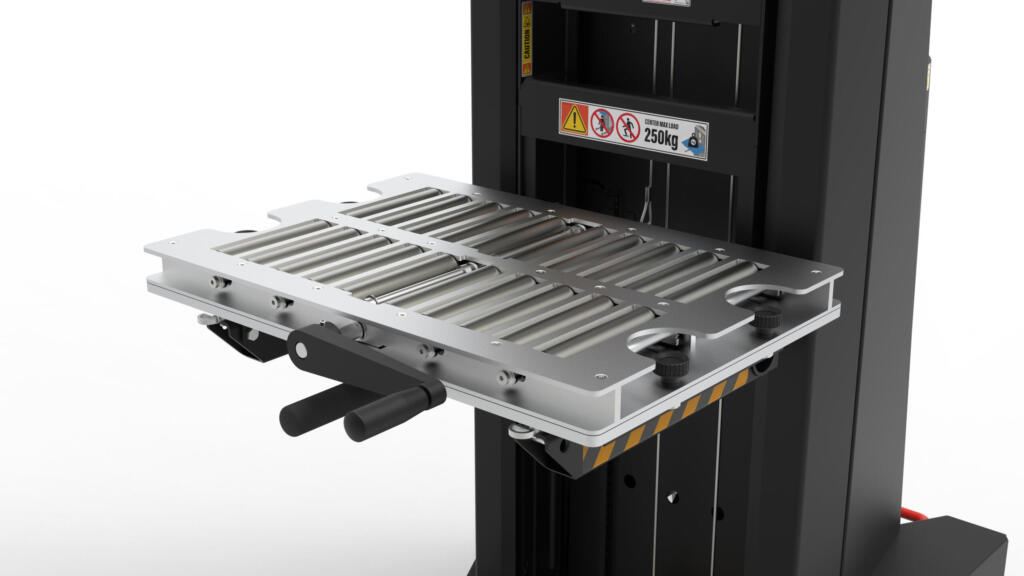

The crank handle governs the deck. Horizontal, the rollers are retracted and the load sits solid for the lift. Pressed down about 45°, twenty rollers come up and the load slides across to the rack under hand pressure alone.
An add-on accessory for the DataLift family, compatible with all DataLifts.
- Rated max load
- 500 kg (or up to the max. load of the DataLift)
- Accessory weight
- 11 kg
- Overall dimensions (L × W × H)
- 610 × 555 × 40 mm
- Attachment
- 4 × fluted grip knobs to the DataLift table
- Roller actuation
- Crank handle: horizontal = retracted,
pressed down about 45° = extended - Compatibility
- DataLift M, E PRO, F PRO, E MAX
WideBoard DC
Larger, Smarter Platform Tables for Modern Data Centres
Modern servers are getting wider, heavier, and more complex, especially with the rapid growth of high-density AI and machine-learning hardware. To support these new demands, we offer WideBoard DC, an enlarged platform table designed for confident, stable handling of oversized IT equipment.

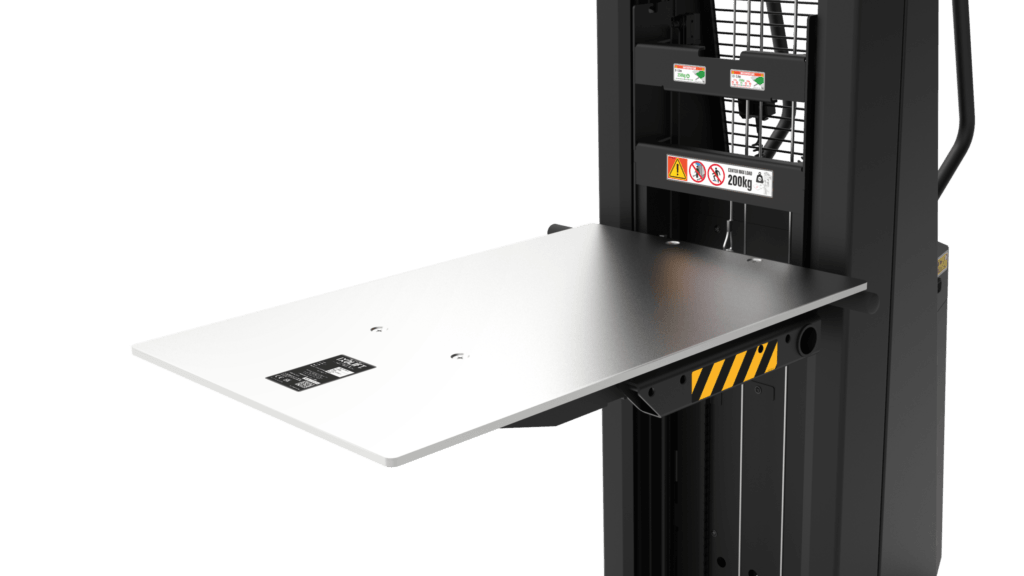

WideBoard units are additional platform tables that mount directly on top of the standard platform tables supplied with every DataLift. The standard tables measure 610 × 420 mm for frontloader lifts and 420 × 610 mm for sideloader lifts, sized to align with the most common rack width of 482.6 mm (19″).
For equipment that exceeds these traditional dimensions, WideBoard DC provides a significantly larger and more stable working surface. Two versions are available to match your rack-server configuration:
- WideBoard DC-F-L (Frontloader)
- 850 × 533 mm

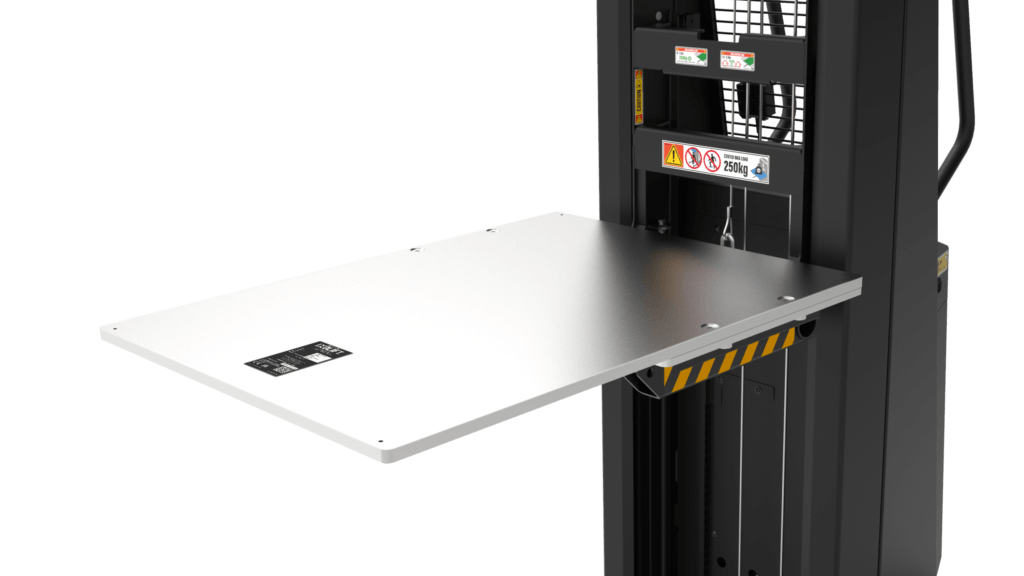

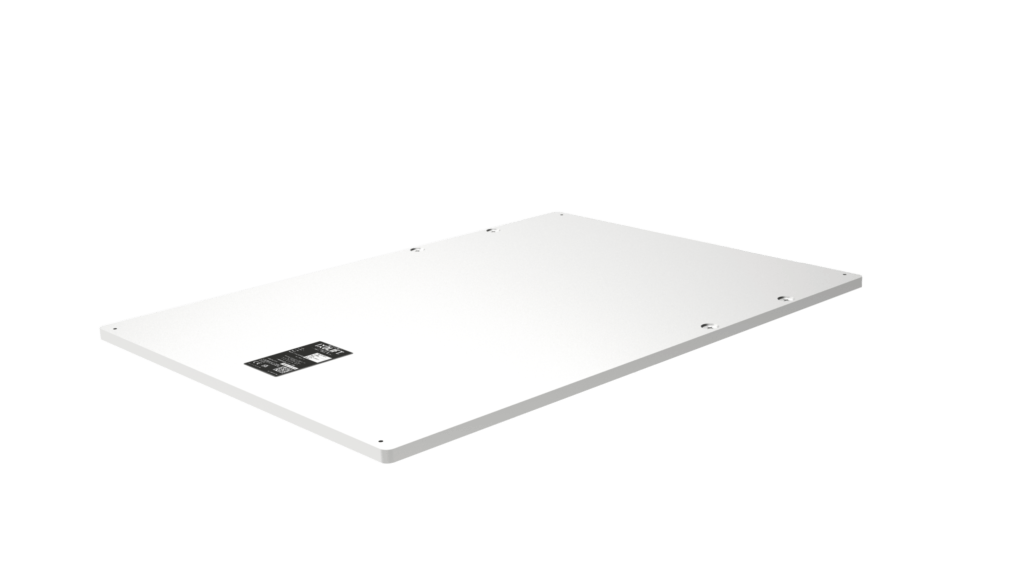

Weight is 12 kg - WideBoard DC-S-L (Sideloader)
- 850 × 610 mm
Weight is 21 kg
Maximum load of the WideBoard DC is 250 kg. Always comply with the maximum lifting capacity of the DataLift in use.
| DataLift model | Max. load [kg] |
|---|---|
| DataLift M | 175 |
| DataLift E PRO | 250 |
| DataLift E MAX | 250 |
| DataLift F PRO | 200 |
Both models expand the usable platform area while maintaining full compatibility with DataLift safety features, accessories, and workflow ergonomics. WideBoard DC ensures that even the largest AI, ML, and high-density servers can be lifted, positioned, and installed with confidence.
DataLift Compatibility
| Model | LiftAssist DC | RollerBoard DC | WideBoard DC-F-L | WideBoard DC-S-L |
|---|---|---|---|---|
| DataLift M | Compatible | Compatible | Not compatible | Compatible |
| DataLift E PRO | Compatible | Compatible | Not compatible | Compatible |
| DataLift E MAX | Compatible | Compatible | Not compatible | Compatible |
| DataLift F PRO | Not compatible | Compatible | Compatible | Not compatible |
Certified for Safety & Compliance
Compliant with European and International standards
- Directive 2006/42/EC Machinery Directive
- CE marked
LiftAssist DC and RollerBoard DC
- Operating temperature
- +5 °C to +40 °C (indoor)
- Minimum lighting
- 50 lux
- Safety distance from persons during lift
- 400 mm
- Country of origin
- Finland, Austria
- Warranty
- 1 year from invoice
